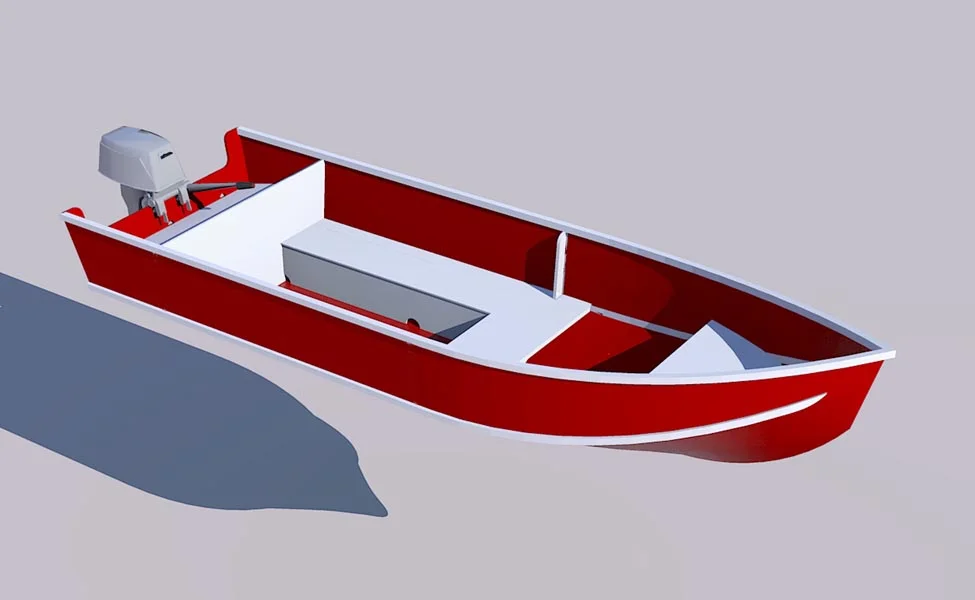

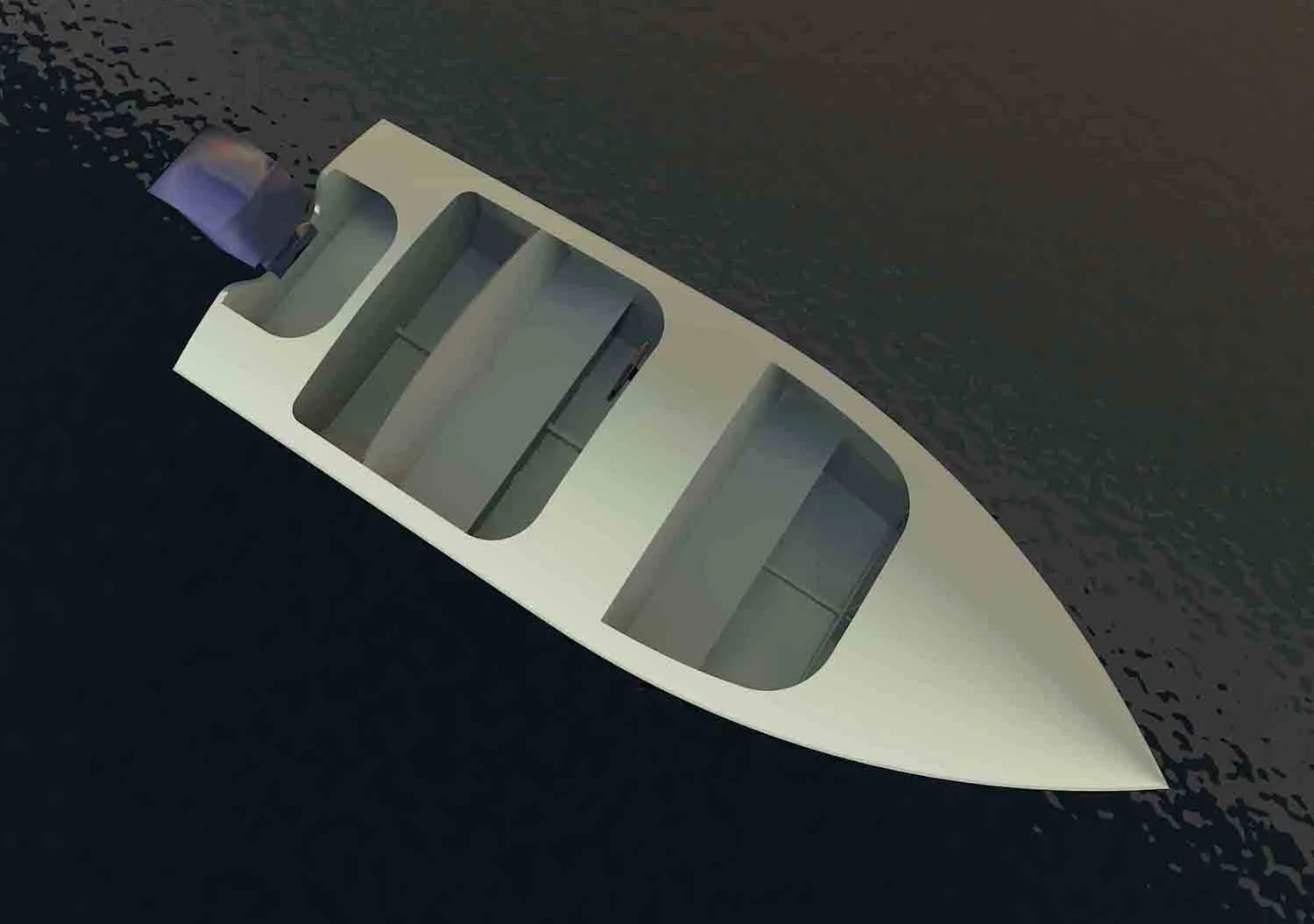

My boat designs are listed on this page.

All of them were created in SketchUP  Pro 3D software. This enables the design to be created as an accurate 3D model.

From each model, all of the frames, bulkheads and hull panels were extracted and the hull panels flattened, so that they can be cut to the right shape.

Hydrostatic analysis is undertaken in PolyCAD and Hullform.

Please click on the images for more information and links to download free study plans or purchase full plans.
